Home /Products/Network Router/Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676

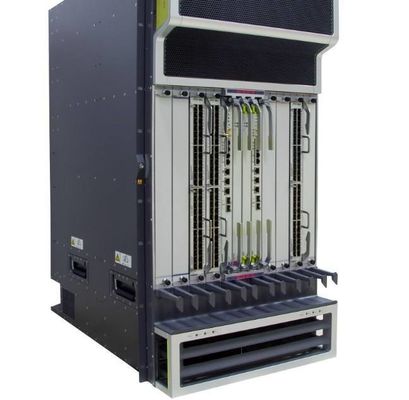

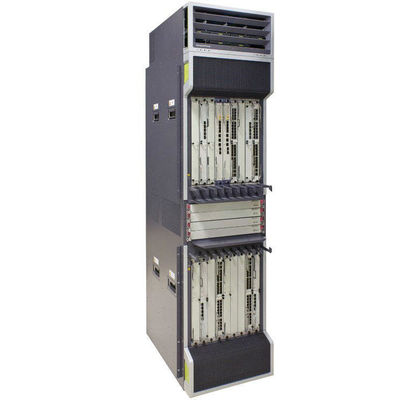

Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676

CN¥722.02/pieces 1-1 pieces
Price
Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Enterprise Router
Use: Enterprise
Network: Bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size: Customized Size
Color: Customizable
Suitable For: Workstation, Laptop, Desktop
Highlight:

wireless network router

,

customized network router

,

wireless enterprise router
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: /
Model Number: CR5B0BKP0873
Payment & Shipping Terms
Product Description
Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676
Product Attributes
Type Enterprise Router
Use Enterprise
Network bluetooth, Wireless Lan, Wired LAN, ONVIF, SDK
Size Customized Size
Color Customizable
Suitable for Workstation, Laptop, Desktop
Product Description
Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676 0 Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676 1 Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676 2 Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676 3 Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676 4
Technical Specifications
Part Number 02351PJP
Model CR5B0BKP1676
Description NE40E-X16A Integrated DC Chassis Components (2T,Including 6 Fan Tray)
First supported version V800R010C00SPC200
Height [mm] 1778 mm
Depth [mm] 946 mm
Width [mm] 442 mm
Chassis height [U] 40U
Weight without packaging (full configuration) [kg(lb)] [2T bundle] 461.3kg (1045.66lb)
Weight without packaging [kg(lb)] 184.1 kg (410.06 lb)
Typical power consumption (with configuration) [W] 9040 W (fully config with LPUF-480s)
12390 W (fully config with LPUI-1Ts)
22450 W (fully config with LPUI-2Ts)
Maximum power consumption (with configuration) [W] 13720 W (fully loaded with LPUF-480s)
18650 W (fully loaded with LPUI-1Ts)
28200 W (fully loaded with LPUI-2Ts)
Power supply mode DC
Input voltage range [V] –40 V to –72 V
Rated input voltage [V] –48 V/–60 V
Maximum input current [A] 63 A/single-module
Number of slots 22
Number of service board slots 16
Switching capacity [bps,bit/s] 81.92 Tbit/s(LPUI-2T)
Redundant Switch fabrics 3+1
Redundant fans [2T bundle] 2 partitions; 3 assemblies/partition; each partition in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
MTBF [year] 22.33
MTTR [hour] 0.5
Availability 0.9999974444
Company Profile
Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676 5 Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676 6 Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676 7
Packing & Delivery
Customizable NE40E-X16A Integrated DC Chassis Components 2T Including 6 Fan Tray for HuaWei Enterprise Router CR5B0BKP1676 8
