Features

Specifications

Max. Lan Data Rate: 1000Mbps

With Modem Function: Yes

Standards And Protocols: Wi-Fi 802.11g

Wi-fi Supported Frequency: 2.4GHz & 5.2GHz & 5.8GHz

Supports WDS: No

Supports WPS: No

Wi-fi Transmission Standard: 802.11b

Wired Transfer Rate: None

2.4g Wi-fi Transmission Rate: 600Mbps

Encryption Type: WPA2-PSK

Private Mold: NO

Products Status: New

Type: Wireless

Application: Network Security

Function: QoS

Lan Ports: 2

Antennas: 2 External Antennas

WAN Ports: 1 X10/100/1000Mbps

Brand: /

Place Of Origin: Beijing, China

5g Wi-fi Transmission Rate: 1000Mbps

Highlight:

1*USB 3.0 Enterprise Routers

4*GE SFP Enterprise Routers

Basic Infomation

Payment & Shipping Terms

Gallery

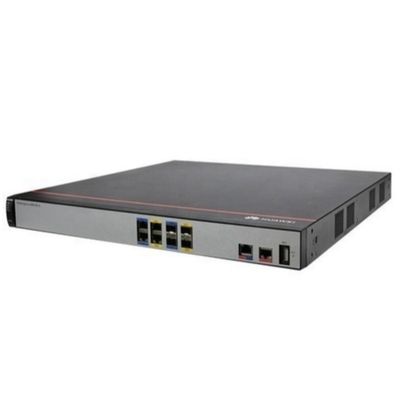

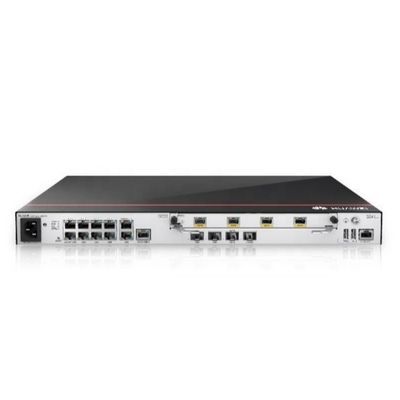

New Original AR6140E-9G-2AC NetEngine AR6100 AC Host 5*GE RJ45 4*GE SFP, 1*USB 3.0 4*SIC Enterprise Routers

Product Description

New Original AR6140E-9G-2AC NetEngine AR6100 AC Host 5*GE RJ45 4*GE SFP, 1*USB 3.0 4*SIC Enterprise Routers

Product Attributes

Product Specifications

Installation Type	Rack
Chassis Height [U]	1 U
Dimensions Without Packaging (H x W x D) [mm(in.)]	Basic dimensions: 44.4 mm x 442.0 mm x 428.2 mm (1.75 in. x 17.4 in. x 16.86 in.) Maximum dimensions: 44.4 mm x 442.0 mm x 431.2 mm (1.75 in. x 17.4 in. x 16.98 in.)
Dimensions With Packaging (H x W x D) [mm(in.)]	175 mm x 550 mm x 710 mm (6.89 in. x 21.65 in. x 27.95 in.)
Weight With Packaging [kg(lb)]	7.75 kg (17.09 lb)
Weight Without Packaging [kg(lb)]	5.35 kg (11.79 lb)
CPU	1.4 GHz, 4 Cores
Memory	4 GB
NAND Flash	1 GB
Console Port	RJ45
RTC	Supported
LAN Ports	2 x GE SFP, 3 x GE electrical
WAN Ports	2 x GE SFP, 2 x GE electrical
Number of Service Board Slots	4
SIC Slots (default/maximum)	4/4
WSIC Slots (default/maximum)	0/2
Redundant MPUs	Not supported
PoE	Not supported
IP Rating	IP20
MTBF [years]	64.50 years
MTTR [hours]	2 hours
Availability	0.9999964601
Typical Power Consumption [W]	22 W
Maximum Power Consumption [W]	28 W
Power Supply Mode	AC built-in
Number of Power Modules	2
Rated Input Voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input Voltage Range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum Input Current [A]	2 A
Maximum Output Power [W]	70 W
Redundant Power Supply	Dual power supplies in 1:1 backup mode
Types of Fans	Built-in
Number of Fan Modules	2
Heat Dissipation Mode	Air cooling
Airflow	Left-to-right airflow
Noise at Normal Temperature (acoustic power) [dB(A)]	49.9 dB(A)
