| Model Number | ZC-T4B17C-SG-DJ |
| Sensor Type | 4M 1/3" CMOS |
| Low Light Performance | Color: 0.001Lux (F1.2, AGC ON), B/W: 0Lux (IR ON) |
| Video Encoding | H.265+/H.265/H.264 with dual stream support |
| Resolution Options | Main stream: 2560×1440, 2304×1296, 1920×1080 Sub stream: D1, 800×448, 640×480 |
| Audio Processing | G.711 codec standard with audio/video synchronization |
| Network Protocols | HTTP, TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, PPTP, GB/T28181 |
| Operating Temperature | -40℃ to +85℃ |

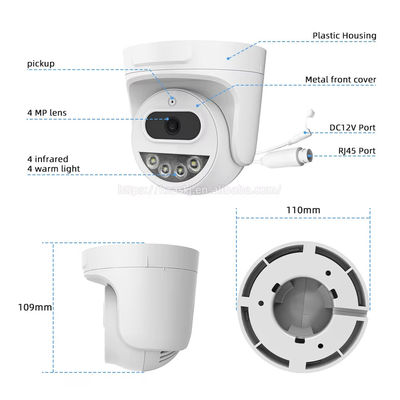

| Dimensions | 110×110×96 mm |
| Weight | 210g (body), 270g (packaged) |
| Warranty | 1 Year |
| Customization | OEM, ODM support available |
| Data Storage | NVR, Full HD options |
| Client Support | iOS, Android, PC applications |
