Features

Specifications

Channels: 16

Video Compression: H.264/H265x

Camera Resolution: 3MP/5MP/8MP

Lens: 3.6mm

Sensor: 1/3" CMOS

View Angle: 75.7° - 19.8°

Infrared Distance: 30M

Waterproof Rating: IP66

Operation Temperature: -25 ℃ - 45 ℃

NVR Video Input: 16*4K/8MP

NVR Video Output: 1*VGA, 1*HDMI

NVR Storage: 1*Max 8TB HDD

NVR Power Consumption: 10W

NVR Size: L335*W250mm*H50MM

Face Detection: Support

Highlight:

16 Channels Surveillance Camera System

Waterproof IP66 CCTV Camera System

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: /

Payment & Shipping Terms

Gallery

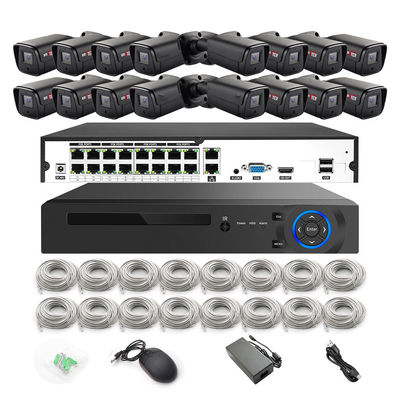

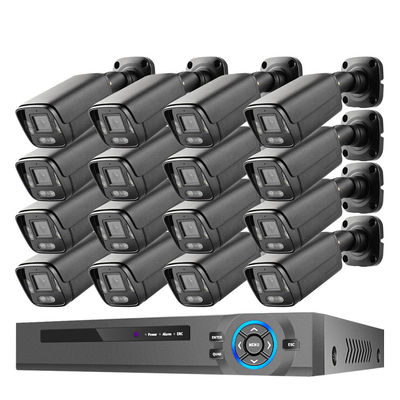

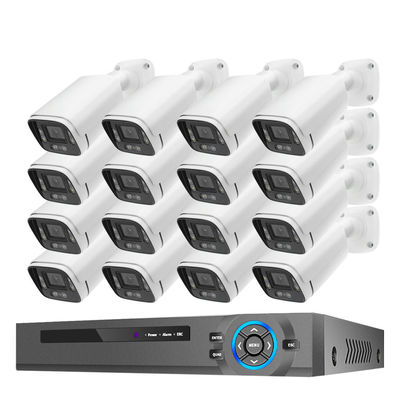

16 Channels Waterproof IP66 Outdoor POE IP Network Surveillance Camera System with 2 Year Warranty

Product Description

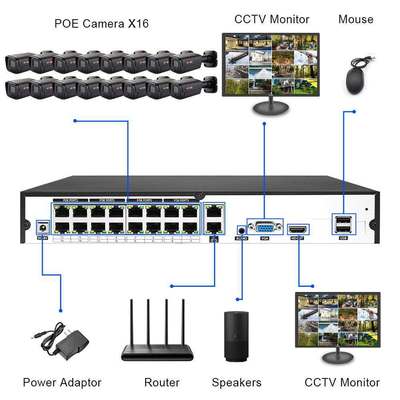

Customized 16 Channels Outdoor Face Detection H.265 4K 8MP Wired POE IP Network Security CCTV Camera Surveillance System

System Specifications

POE Kit Specifications
Model Type	16CH POE Surveillance Kit 4K
Model No.	NST-PK6858-16
POE Camera Specifications
Lens	3.6mm
Sensor	1/3" CMOS
S/N Ratio	>47db
Image Pixel/Resolution	3MP/5MP/8MP
Image Compression	H.264/H265x
View Angle	75.7° - 19.8°
Infrared Distance	30M
Minimum Illumination	0 Lux (IR-Cut)
Day & Night	Automatic IR-Cut
3D-DNR	Auto/BW/Color
OSD	Date Time/Tilt
White Balance	Auto
Stream	Dual Stream
Internet Interface	1*RJ45 10M/100Mbps adaptive Ethernet interface
Power	POE, Power Over Ethernet
Materials	Aluminum Alloy
Waterproof	IP66
Operation Temperature	-25℃ - 45℃
Warranty	2 Year
POE NVR Specifications
Model No	NVR-7516P-4K1
System	Embedded Linux
Video Input	16*4K/8MP
Video Output	1VGA, 1HDMI
Video Compression	H.264/H265x
Synch-playback	14K,25MP, 4*4MP
Backups	Manual
Storage	1*Max 8TB HDD
Face Detection	Support
USB Interface	2*USB2.0
Onvif Protocol	Yes
Internet Protocol	UPnp, SMTP,PPPoE,DHCP,RTSP
Power	DC 52V/4.6A
Power Consumption	10W
Operation Temperature	0℃ to 55℃
Size	L335W250mmH50MM
